bga 2 In 1 Soldering Station

2 In 1 Soldering Station YIHUA 862DA+ automatic bga rework station

 Feature:

1.YIHUA862DA+ SMD SMT hot air repair rework station soldering iron station use Imported high power heater ,easy for desoldering large solder joints,rough blocks, miscellaneous difficult solder joints.

2. Microcomputer intelligent temperature control,CPU tracking the heating  temperature for illisecond.using super speed to tracking detection the iron actual temperature and correction,heater always is fast energized, power-off state, precise temperature control, temperature stability, weld better, and can effectively avoid errors due to temperature soldering and damage components or motherboard.

3.Iorn intelligent sleep range:0~99min, Iron Intelligent Sleep = Energy saving+reduce losses,Extend the life+Safety

4. Our product use SMD technology,double panel design,“SAMSUNG” kernel control,the capability accuracy,less error rate.

5.It has Air gun manual/Auto. mode  function.

6. Temperature correction function :corrected temperature range ± 50 °C

7.airflow digital disply:0~80

8. Resistant to high temperatures, can effectively prevent the high-temperature state Iron or air gun will handle wire burns ,protection of safety.
 9.Good flexibility,Resistant to high temperature and low temperature.

10. Handle protective sleeve designed according to Ergonomic,Comfortable to use , Diaphragm pump,spiral out of the wind both the pump and the brushless fan blowing air advantage .
11. The machine adopts imported nickel-chromium wire skeleton heating element

Technical Data:

Model: YIHUA 862DA+

Power consumption:720W

Measurement: 124*187*157MM

Working environment:0~50°c/0~122°F

Storage environment:-20-80°c/-68~176 °F

Hot Air Reworks

Airflow type: Diaphragm pump

Aiflow: 28L/min

Temperature range:100-480°c/212~896°F

Temperature Stability: ±1°C

Display Type: LCD Display

Handle length: ≥100CM

Soldering Iron

Temperature range:200-480°c/392~896°F

Temperature Stability: ±1°C

Tip of ground voltage: <2mV

Tip ground impedance :<2 ohm

Display Type: LCD Display

Handle length:≥100CM

Iron heater material: Imported heater

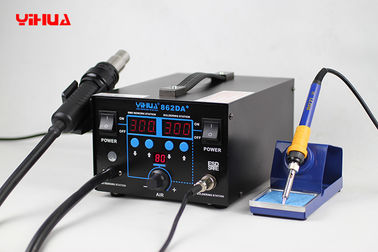

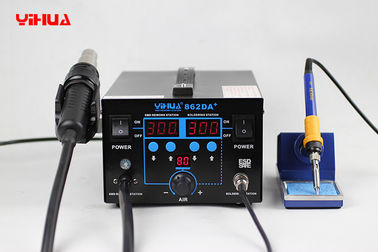

2 In 1 Soldering Station YIHUA 862DA+ automatic bga rework station picture:

What's in the box :

* main unit + gun + power cord
* guide
* soldering iron handle

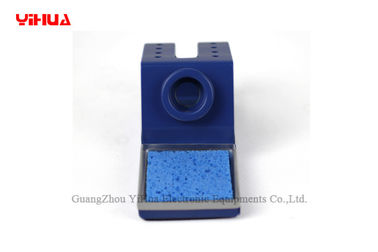

* soldering iron holder +gun frame+ clean sponge

* 4 nozzles

*1pc IC pick-up

These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units

  Our warranty

*Credit Safeguard

GuangZhou YiHua Electronic Equipments Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit, make buyers fee l comfortable buying

*Factory advantage

Factory D&R / production/ sales/ and sales service together.

Manufactory  sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship. If  we help you arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise  you ship by sea  or, by air ,or by Express. As usual, we are using HongKong DHL to ship the small order..

*Delivery date

Over 100~over500pcs are 20days  will ship out. Over 1000pcs are 30days .

If the material not enough or we have some customer  queue up our products before you,

we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.

*Warranty policy

One Years warranty

As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .

Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.

*Products  discount

as usual we quote three price for each model :sample price, over 60pcs price, over 500pcs price.

Those price are calculate our produce cost, as you know big order are less margin to sell. we hope take win-win business with both.

*Warm-heart  note

1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.

2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce
