Temperature control Mobile Phone Rework Station

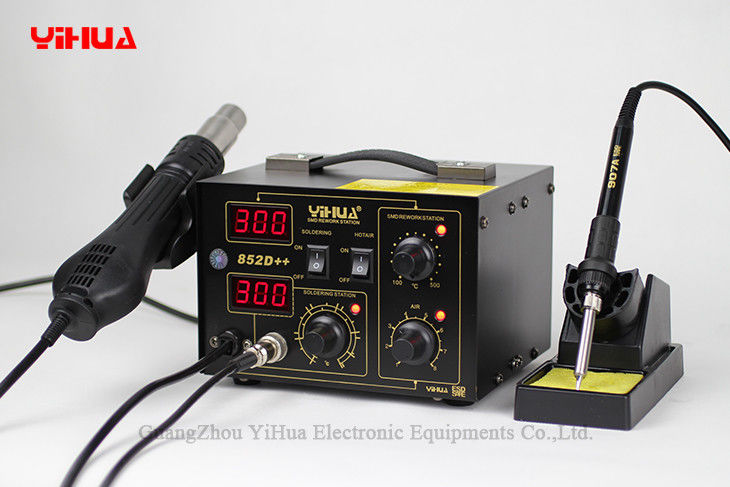

YIHUA 852D++ Mobile Phone rework station

 MAIN FUNCTION

1. SAMSUNG microcomputer control,warming-up quickly.

2. Adjust the air flow and temperature control rotation.

3. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.

4. Would replace the part if the resistance value is incorrect.

5. When the temperature is less than 70 degree, can stop rotation automatically.

6. Intelligent system that could alarm, Fault detection automatically

7. High-quality resistance good for long service life

8. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.

9. Intelligent detection and cool airflow features.

10. Green lines and high-quality silicone body heat good for extend life and save power.

11. Small housing make most area saving.

12. Add main switch of power supply to protect the whole machine.

Technical data:

Model: YIHUA 852D++

Power consumption:700W

Measurement:124*187*249cm

Working environment:0~50°C

Storage environment:-20-80°C

Hot Air Reworks

Airflow type: brushless fan gentle wind

Airflow:≤120L/min

Temperature range:100°C-450°C

Temperature Stability:  ±1°C

Display Type: LED Digital display

Handle length:≥100CM

Soldering Iron

Temperature range:200°C-450°C

Temperature Stability:±1°C

Tip of ground voltage:<2mV

Tip ground impedance:<2 ohm

Display Type: LED Digital display

Handle length:≥100CM

Iron heater material: Common heater

Outer Q’TY:6PCS /CTN

Inner box size:31.5*22*22cm

Outer carton:43.8*32*66.5cm

G.W.:18.5KG/CTN

Remark: Specifications and design subject to change without notice.

What's in the box :
* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder
* 3 nozzles

These are 220V units, you may need a transformer to use the machine in your country. we also do accept special orders for 110V  / 230V/ 240V units.

Our warranty

*Credit Safeguard

GuangZhou YiHua Electronic Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit, make buyers feel comfortable buying

*Factory advantage

Factory D&R / production/ sales/ and sales service together.

Manufactory  sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship. If  we help you arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise  you ship by sea  or, by air ,or by Express. As usual, we are using HongKong DHL to ship the small order..

*Delivery date

As usual, 1~16pcs are 1~3 days will ship out . Made in time, fresh from the assembly line.

Over 100~over500pcs are 20days  will ship out. Over 1000pcs are 30days .

If the material not enough or we have some customer  queue up our products before you,

we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.

*Warranty policy

One Years warranty

As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .

Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.

*Products  discount

as usual we quote three price for each model :sample price, over 60pcs price, over 500pcs price.

Those price are calculate our produce cost, as you know big order are less margin to sell. we hope take win-win business with both.

*Warm-heart  note

1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.

2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce.
