Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
Place of Origin: | Guangzhou China |
ชื่อแบรนด์: | YIHUA |
ได้รับการรับรอง: | CE |
Model Number: | 872D |
inner box size: | 32*27*20.2cm |
---|---|
outer box size: | 58*35*63.5cm |
outer carton goods quantity: | 6PCS |
G.W.: | 25.2KG/CTN |
goods weight: | 4.2kg/pcs |
color: | white-blue |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | 6PCS / CTN |
Payment Terms: | T/T/ PAYPAL / WESTERN UNION |
แสงสูง: | soldering rework station,smd rework station |
---|

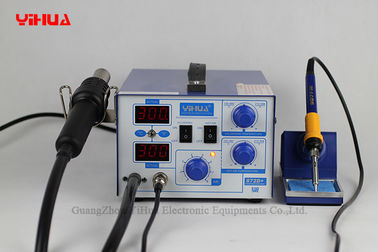

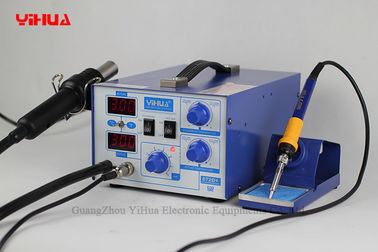

Large Power Lead-free LCD Repair Machine,Welding Station soldering station
Features:
1. 872D+ integrate all merits of 872D,and YIHUA872D+ use imported large-power heater,and use bule Ferro-alloy iron holder.
2. 872D+ Soldering station products according to different regions market demands, with designed Fahrenheit / Celsius temperature display accurate conversion, according to the country person custom method used to select the display preferences.
Goods datas Specification:
Model | 862 Series | 872D+ |
Power Consumption | 700W | 720W |
Measurement | 124*187*249MM | 124*187*157MM |
Weight | 3.2KG | 4.8KG |
Working environment | 0~50°C | 0~50°C/0~122°F |
Storage environment | -20-80°C | -20-80°C |
Hot Air Reworks | ||
Airflow type | brushless fan gentle wind | diaphragm pump spiral wind |
Air Flow | ≤120L/min | ≤24L/min |
Temperature Range | 100°C-480°C | 100°C-480°C |
Temperature Stability | ±1°C | ±1°C |
Display Type | Digital Display | Digital Display |
Handle length | ≥90CM | ≥90CM |
Soldering Iron | ||
Temperature Range | 100°C-480°C | 100°C-480°C |
Temperature Stability | ±2°C | ±2°C |
Tip of ground voltage | <2mV | <2mV |
Tip ground impedance | <2 ohm | <2 ohm |
Display Type | Digital Display | Digital Display |
Handle length | ≥100CM | ≥100CM |
Performance comparison table | ||
series | 862 | 872 |
Model | 862D+ | 872D+ |
LED Display | Two LED | Two LED |
Fahrenheit/Celsius Conversion | NO | YES |
Controal Temperature Type |
Digtal PID | Digtal PID |
Mannual/AUTO. | YES | NO |
High-temperature Protection | YES | YES |
Send air Type | Brushless fan | Diaphragm pump |
What's in the box:
* main unit + gun + power cord
* guide

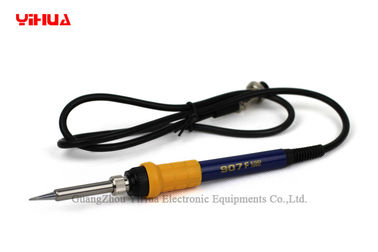

* soldering iron
* soldering iron holder
* 4 nozzles
*1pcs IC pick-up
The following pictures is Soldering rework station air nozzles and soldering tips can choose to buy:
Our warranty
* Credit Safeguard
GuangZhou YiHua Electronic Equipments Co,. Ltd was signed a contract with Alibaba and paid a large deposit, make buyers fee l comfortable buying
* Delivery date
Over 100~over500pcs are 20days will ship out. Over 1000pcs are 30days .
If the material not enough or we have some customer queue up our products before you,
we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.
* Warranty policy
One Years warranty
As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .
Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.
* Warm-heart note
1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.
2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce
